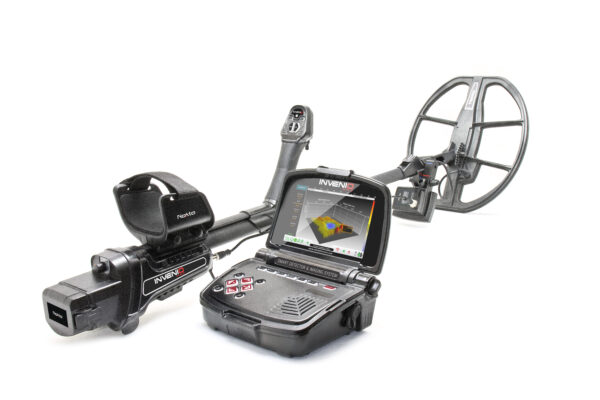

Nokta Invenio Pro Deep Search Imaging Metal Detector

Description



Invenio is the first and single revolutionary step taken towards turning a dream into reality in the metal detector industry!

Invenio represents one of the most dramatic advances in metal detection technology since conventional metal detectors first appeared on the market in the 1930s. While many new features and advancements in technology have been introduced since, Invenio provides the first major step forward in meeting consumer expectations.
While the competition has simply pushed the existing patents and technology forward; none have gone much beyond generating basic beeps and IDs for targets.

USERS MANUAL



On the other hand, users have been expecting a lot more from a detector:
1. To discover deeper targets
2. To know what type of a metal the detected target is
3. To see the real depths of targets
4. The see the real shapes of targets
5. To determine the dimensions of targets
6. To detect ground anomalies/cavities

Nokta Detectors, since its foundation, has been taking steps towards turning this dream of users into reality. After years of extensive Research & Development and advanced engineering studies, Nokta & Makro has achieved the development of the world’s first Smart Detector & Imaging system – the Invenio. Nokta & Makro owns the whole technology and know-how used in the Invenio for which 3 different patents are applied for.

Invenio is designed as a platform that can be advanced and it is planned to be integrated with all hobby detectors (coin and relic) as well as gold nugget detectors in the future.

1 – System Box
2 – Shaft & Handle
3 – IPTU Sensor
4 – Waterproof DD Search Coil 40×35 cm (INV40) & Cover
5 – Waterproof DD Search Coil 56×40 cm (INV56)
6 – Waterproof DD Search Coil 28×18 cm (INV28) & Cover
7 – KOSS Headphones (6.3 mm Jack)
8 – System Box Carrying Case
9 – Spare 9500mAh LiPo Battery
10 – AC Charger
11 – Car Charger
12 – USB Cable
13 – Harness/Carrying Belt/Bungee Cord
14 – Coil Mounting Hardware
15 – IPTU Sensor Carrying Bag
16 – Protective Covers
17 – Screen Sunshade
18 – INV56 Carrying Bag
19 – Waterproof (IP67) Hard Transport Case



Specifications



Operating System	Embedded Linux System
Graphic Process	OPEN GL
Sensor	IPTU (Integrated Positional Tracking Unit) Sensor
Operating Principle	VLF
Operating Frequency	5kHz/14kHz/20kHz
Audio Frequencies	150Hz – 700Hz adjustable
Search Modes	3 Non-Motion (Basic/Expert/Ground Anomaly & Cavity) and 3 Motion (All Metal/Fast/Deep)
Iron Audio	Yes
Tone Break	Yes
Notch Filter	Yes
Languages	English / German / Greek / Turkish / French / Italian / Russian / Arabic/ Spanish / Chinese / Persian / Bulgarian / Serbian / Romanian / Dutch / Portuguese / Polish
Ground Balance	Automatic / Manual / Tracking
Pinpoint	Yes
Frequency Shift	Yes
Vibration	Yes
Sensitivity Setting	01-99
Target ID	00-99
Search Coils	Waterproof DD Search Coil 28×18 cm (INV28) Waterproof DD Search Coil 40×35 cm (INV40) Waterproof DD Search Coil 56×40 cm (INV56)
Display	7″ 800×480 18 Bit RGB TFT Screen
Backlight	Yes
LED Flashlight	Yes
Weight	System Box: 1.7kg (with 5500 mAh battery) Shaft and Handle: 2.4kg
Length	121cm -152cm adjustable
Shaft Battery	7.4 V 5400 mAh LiPo
System Box Battery	7.4 V 5500 mAh LiPo
System Box Spare Battery	7.4 V 9500 mAh LiPo (included in pro package only)
Shaft Battery Life	Approximately 9 hours
System Box Battery Life	Approximately 5 hours
System Box Spare Battery Life	Approximately 9 hours
Warranty	2 Years
Patents	Displaying the shape & dimensions of metals, displaying the depth of metals, displaying ground anomalies / cavities
