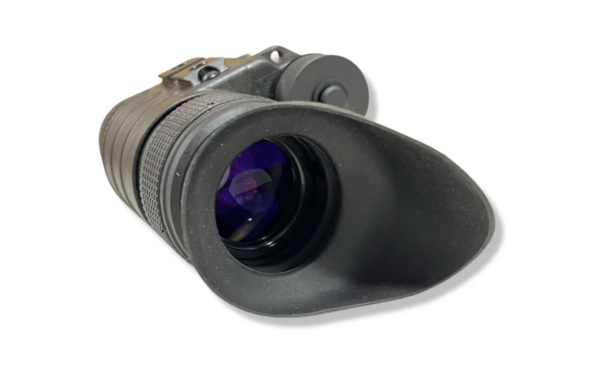

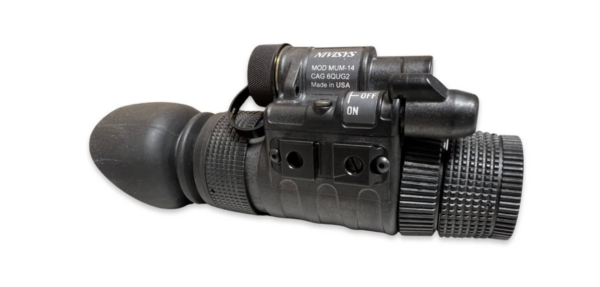

NiViSys Night Vison Moncular MUM-14

Category: Tags: , , , , , , ,

Description

Real deal Gen 3 night vision.  Call or email me for pricing.  Made In The USA

The Multi-use MUM-14 Mini-Monocular is a high performance modular, hand-held passive night vision monocular device that utilizes a single Generation III intensifier tube to provide crisp, clear images under the darkest conditions. The Mini Monocular “single tube / single eyepiece” approach to night vision missions is based upon the proven concept that independent use of each eye maximizes the ability of the user to operate under a wide range of low light conditions and maintain maximum situational awareness.

Small and versatile, the MUM-14 Mini-Monocular gives you a high performance 2nd or 3rd generation system in the smallest, toughest package available. The MUM-14 has the ability to be weapon mounted, head/helmet mounted, hand-held, optionally attached to C-Mount lenses, cameras and extender 3x/5x Afocal objective lenses. Also available is the dual-system head/helmet mount that allows two Mini Monoculars to become one binocular system.

  • Features

    • 3rd Generation
    • High Res: 64 lp/mm
    • Lightweight
    • Compact
    • Rugged Design
    • Hands-free Operation
    • Integrated IR Illuminator
    • Submersible to 20m
    • Single Battery Use (AA or CR123)
    • MIL-SPEC
    • Head, Helmet or Weapon Mountable
    • Intuitive Modular Design
    • Dual Mini Rails for Fast Head and Weapon Mounting Transition

  • Specifications

    • Image Intensifier Tube: 18mm 2nd/3rd Gen
    • Resolution: 1.3 cy/mR (typical Gen III)
    • Spectral Response: 600-900nm
    • Objective Lens: 27mm, f/ 1.2
    • Magnification: 1x (unity)
    • Field of View: 40° standard13.3° with 3x Afocal10.0° with 4x Afocal8.0° with 5x Afocal
    • Focus Range: 25cm – ∞
    • Battery Type: CR123 lithium or AA
    • Battery Life: >40 hours operation (CR123)>20 hours operation (AA)
    • Dimensions: (L x W x H)11.4cm x 4.9cm x 7.9cm
    • Diopter Range: +4 to -6
    • Weight: 305g (10.7 oz)
    • Eye Relief: 25mm
    • Indicators: Low Battery (yellow)IR Illuminator (red)
    • Environmental: -37°C to +54°C (operating)-51°C to +71°C (storage)20m (submersible)

  • Basic Kit:

    • Monocular
    • Swing Arm
    • Weapon Mount
    • Green Soft Carry Case
    • AA Battery Adapter
    • Neck Cord
    • Objective Lens Cap
    • Sacrificial Window
    • Batteries (AA and CR123)
    • Lens Tissue
    • Demist Shield
    • Rubber Eyecup
    • Manual
    • Headmount with browpads (S,M,L)
  • The hardware and/or data supplied in connection with this transmission, including Purchase Order and/or Request for Quotation, may be subject to export control under the jurisdiction of either the International Traffic in Arms Regulations, 22 CFR 120-130 (ITAR) or the Export Administration Regulations, 15 CFR Parts 730-774 (EAR). The disclosure or transfer of this hardware and/or technical data to foreign person(s) may require written export authorization granted by the Directorate of Defense Trade Control (DDTC) or the Bureau of Industry Security (BIS) in the form of an export license, a technical assistance agreement, or the use of an applicable exemption or exception. The Supplier is not allowed to export the hardware and/or technical data provided by Nivisys LLC without prior written approval from Nivisys LLC’s Export Compliance Officer. Diversion contrary to U.S. law is prohibited. Violations are punishable by both civil and criminal penalties, which may be severe.
